• Fuel delivery from rear of truck
• Hose reel options available
• Ergoload^® Deck design available (standard deck pictured)
•

MID-DELIVERY

• Inverted hose reel located behind cab
• Hose reel allows for delivery off either side of truck
• Additional versatility for residential and commercial deliveries

Blueline QX Bobtail Walk-Around

Get a tour of the key features.

Features

• Westmor-manufactured vessel
• Westmor-manufactured stainless steel decking
• Bolt-on removable fenders
• Centrally-located electrical panel
• LED lighting wired to meet FMVSS 108
• Welded internal piping
• Axalta Imron® elite paint
• Manufactured in the United States

Options

• Bolt-on stainless steel or half-round aluminum fenders
• Standard rear or mid-delivery options
• Open or enclosed decking with or without Ergoload® Deck Design
• LP3 Delivery system
• Ask about our many safety features and options
• Custom paint
• Work lighting at rear of tank and back of cab
• Strobe lights at rear of tank and front of truck
• Tank evacuation/self-load: 1.25” customer pump-out line, 2” self-loading line

• Painted carbon steel, painted stainless steel or polished stainless steel piping
• Rock Guard protection applied to lower portion of tank and chassis frame rails to prevent corrosion
• Multiple meter options from Liquid Controls (LC), Total Control Systems (TCS) and Red Seal (Neptune)
• Register options: LCR-II, LCR-600, LCR.iQ, TCS3000, MID:COM E:count

We’re serious about propane here in CA. We chose Westmor because of their history (they’ve been in the business for a long time.) We eliminate at least one trip per day to the bulk plant with the extra gallons this truck carries.

Common Options

See common options on the Blueline QX Bobtail by Westmor Industries.

WESTMOR ONLY: DECK OPTION FOR BLUELINE BOBTAILS

Ergoload Deck »

• Ergonomic position for loading
• Waist-height spray-fill and vapor recovery lines
• Reduces strain, stress and injury to operators
• Patented technology

Stock Inventory

Drive a Blueline Bobtail off the lot. Check out Westmor’s stock inventory of truck and trailers.

Have questions or need something customized? Complete the form below and we will follow up shortly.

REQUEST MORE INFO



Truck & Trailer Services

When it comes time for inspections, maintenance, parts or repairs, we are well-equipped to serve you.
Click on any service to get more information.

TESTS & INSPECTIONS

From DOT inspections to meter calibrations and upgrades, Westmor can help you to stay compliant with regulations. Stay running smoothly all season long.

PARTS

In need of a replacement part? We have stock on hand, ready to ship. Meters, pumps, valves, registers and more. Same day shipping is available in most cases.

REPAIR & REFURBISH

Whether you need a major refurbish or a simple repair, we can help you get up and running at one of our truck service centers.

One Trailer = Two Trucks

 customers and industry contacts have talked a lot about driver shortages and its a real concern.

The standard Blueline® Distribution Trailer model features a 6,000-gallon cargo tank, which is near twice the capacity of a typical single-axle bobtail. This means fewer trips to the bulk plant, opportunities to consolidate routes, and the versatility to supplement transport loads, as needed. The increased productivity can help reduce the demand for more drivers.

In some cases, a single trailer and driver can replace two bobtails and two drivers.

The Evolved Design.

The distribution trailer product has been around for decades but Westmor has evolved the design to help alleviate challenges with chassis shortages.

The Blueline® Distribution Trailer has the same features and options as our Blueline® Bobtails. Because it’s a trailer, you do not need to wait for chassis availability to deliver your propane.

As an added bonus, the payload can reduce the demand on your bobtails, or free up your bobtails to grow gallons in other markets, and the trailer will reduce trips to the bulk plant.

Kenworth, Peterbilt and Freightliner chassis available

Freightliner Standard Build

NEW 325 HP MODEL Standard Features

New 80” 3,200-Gal tank

Aluminum open deck, natural finish deck and fenders, meter cabinet

Options

BLUELINE BX BOBTAIL

Base Model

• Up to 3,499 gallons
• Designed for shorter run deliveries to residential, farms and commercial customers
• Chassis options

BLUELINE HX BOBTAIL

High-Volume Delivery Model

• 3,500 – 7,000 gallons
• Designed for longer distance deliveries, multiple drops or large single bulk drops
• Chassis options

BLUELINE MX BOBTAIL

Maneuverability Model

• Designed for delivery in hard-to-reach areas
• Ideal for filling small propane cylinders
• Multiple configurations available

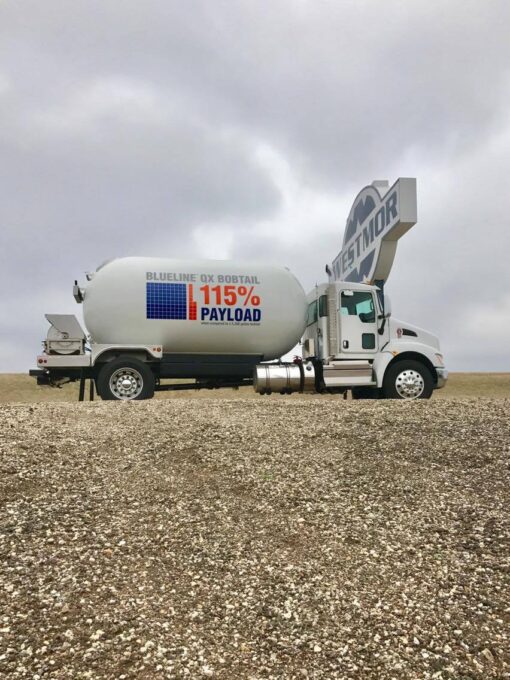

BLUELINE QX BOBTAIL

Lightweight Model

• 3,700 gallons on a single axle
• Designed to haul for residential, farm or commercial use
• Rental program available

WESTMOR ONLY: DECK OPTION FOR BLUELINE BOBTAILS

Ergoload Deck »

• Ergonomic position for loading
• Waist-height spray-fill and vapor recovery lines
• Reduces strain, stress and injury to operators
• Patented technology

Stock Inventory

Check out Westmor’s stock inventory of truck and trailers. New and used trucks are available.

ERGOLOAD® DECK DESIGN

• Waist-high spray-fill and vapor-return connections
• Lower deck is easier to access for drivers
• Reduces strain on the driver during fills

MID-DELIVERY

• Safer option for residential and city deliveries
• Minimizes the need to back up
• Improved driver productivity with fewer steps needed during delivery

FLEX FILL

• Increase productivity with higher flow rates
• Add versatility and efficiency with multiple hose reels
• Improve route efficiency

PATHWAY™ DELIVERY SYSTEM

• Swiveling ergonomic reel positioning
• Creates efficiency with propane delivery
• Locks into preferred position

KEY BENEFITS / FEATURES

Westmor’s service pack option is designed to allow for convenient access to tools and storage. Drivers can organize and store fittings, tools and equipment in an organized drawer system and perform minor service work without disrupting their route.

• Drawers lock in place when closed
• Customizable dividers allow drawers to be configured to fit
• Optional LED light bar

Small Service Pack

• 18″ tall x 18″ deep x 36″ wide aluminum cabinet
• 3 shallow drawers
• Optional LED light bar

Large Service Pack

• 36″ tall x 24″ deep x 48″ wide aluminum cabinet
• 1 shallow drawer and 3 deep drawers
• Shelf area on top for additional storage
